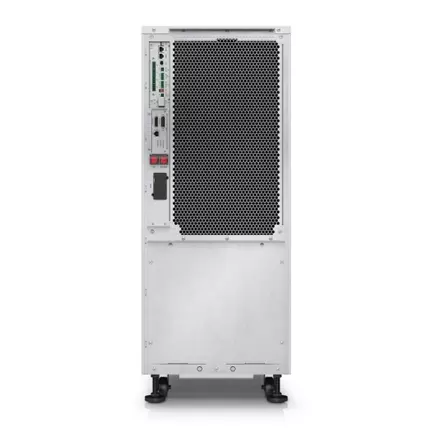

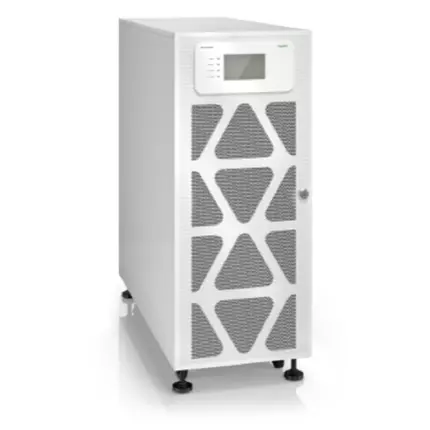

APC Easy UPS 3M 100kVA 400V 3:3 UPS for External Batteries E3MUPS100KHS

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 100 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5x8 start-up service. Features: Main Input Voltage: 400 V 3 phases Product or component type: Uninterruptible power supply (UPS) Other Input Voltage: 380 V, 415 V Main Output Voltage: 400 V 3 phases Other Output Voltage: 380 V, 415 V Rated power in W: 100 kW Rated power in VA: 100 kVA Range of product: Easy UPS 3M Batteries & Runtime Battery type: External battery system Number of battery filled slots: 0 Number of battery free slots: 0 Physical Colour: White (RAL 9003) Height: 91.5 cm Width: 36 cm Depth: 85 cm Product weight: 145 kg USB compatible: Yes Input Maximum input current: 177 A Max short time withstand current: 10 kA Input harmonic distortion: Less than 3 % for full load Load power factor: 0.5 leading to 0.5 lagging Input Power Factor at Full Load: 0.99 Input voltage limits: 342...477 V Number of input connectors: 1 hard wire 5-wire (3P + N + E) Network frequency: 40...70 Hz Output Maximum configurable power in VA: 100 kVA Maximum configurable power in W: 100 kW Output frequency: 50 Hz sync to mains, 60 Hz sync to mains Harmonic distortion: Less than 3 % Output harmonic distortion: < 3% linear load and < 5% non-linear load Output overload operation: 10 minutes at 125% and 60 seconds at 150% UPS type: Double conversion online Wave type: Sine wave Bypass type: Built-in static bypass Crest factor: 3 : 1 Environmental Ambient air temperature for operation: 0…40 °C Relative humidity: 0…95 % non-condensing Operating altitude: 0...4921 ft Ambient air temperature for storage: -25…55 °C Storage Relative Humidity: 0…95 % non-condensing Storage altitude: 0.0000000000…15240.0000000000 m Acoustic level: 65 dBA Heat dissipation: 18767 Btu/h IP degree of protection: IP20 Communications & Management Free slots: 1 Control panel: Touch screen LCD user interface
