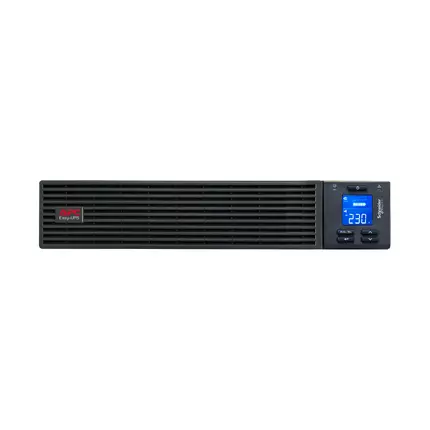

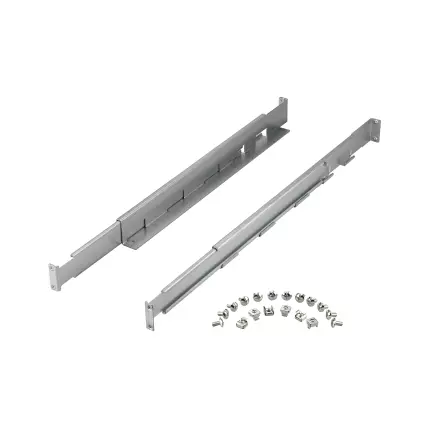

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit SRV3KRIRK

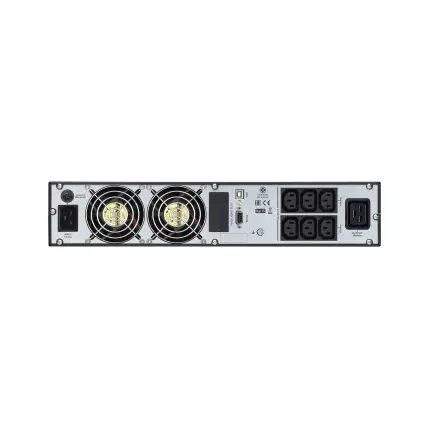

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT. Specifications Overview High-quality, Double-conversion On-line UPS designed to provide essential power protection in the most unstable power conditions. Lead Time Usually in stock Main Features Run Time for Load : 2400 W Min-Max: 240-2400 W Run time: 4 minutes 24 seconds Max. Capacity Used: 100>#/li### Main Input Voltage : 230 V Other Input Voltages : 220 V, 240 V Main Output Voltage : 230 V Other Output Voltages : 220 V, 240 V Rated Power (W) : 2400 W Rated Power (VA) : 3000 VA Input Connection Type : IEC 60320 C20 Output Connection Types : 6 x IEC 60320 C13 1 x IEC 60320 C19 Number of Rack Units : 2U Cable Length : 1.48 m Number of Cables : 1 Provided Equipment : 1 x IEC 60320 C19 to Schuko power cable 1 x IEC 60320 C13 to C14 power cable 1 x USB cable 1 x RS-232 configuration cable 1 x Rack mounting brackets 1 x Rack mounting support rails User manual Range of Product Model : Easy UPS On-Line Batteries & Runtime Battery Type : Lead-acid battery Battery Voltage : 72 V Extended Runtime : None Number of Battery Filled Slots : 0 Number of Battery Free Slots : 0 Battery Recharge Time : 4 hours Battery Life : 3 to 5 years Replacement Battery : APCRBCV202 Battery Charger Power : 60 W rated General Features Number of Power Module Filled Slots : 0 Number of Power Module Free Slots : 0 Redundant : No Physical Characteristics Color : Black (RAL 7010) Height : 8.6 cm Width : 43.7 cm Depth : 63.2 cm Net Weight : 27.6 kg Mounting Location : Front Mounting Preference : Lower Mounting Mode : Rack-mounted USB Compatible : Yes Mounting Position : Horizontal Input Features Input Voltage Limits : 110...285 V half load 160...280 V full load Network Frequency : 40...70 Hz auto sensing Output Features Maximum Configurable Power (VA) : 3000 VA Maximum Configurable Power (W) : 2400 W Output Frequency : 50/60 Hz ±3 Hz (sync to mains) Harmonic Distortion : 3>#/li### UPS Type : Double conversion online Wave Type : Sine wave Efficiency : 88% (full load) Bypass Type : Internal bypass (automatic and manual) Crest Factor : 3:1 Conformance & Certification Product Certifications : CE UKCA EAC TISI Standards : EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Features Ambient Air Temperature for Operation : 0…40 °C Relative Humidity : 0…95% (non-condensing) Operating Altitude : 0...3000 m Ambient Air Temperature for Storage : -20…50 °C Storage Relative Humidity : 0…95% (non-condensing) Storage Altitude : 0…15000 m Acoustic Level : 50 dBA Heat Dissipation : 910 Btu/h IP Degree of Protection : IP20 Communications & Management Alarm : Alarm when on battery Distinctive low battery alarm Overload continuous tone alarm Free Slots : 1 Control Panel : Multifunction LCD status and control console Surge Protection and Filtering Surge Energy Rate : 600 J
