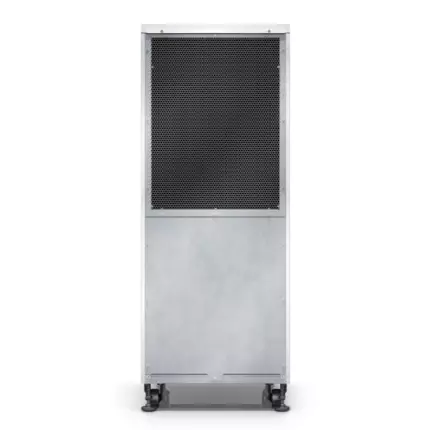

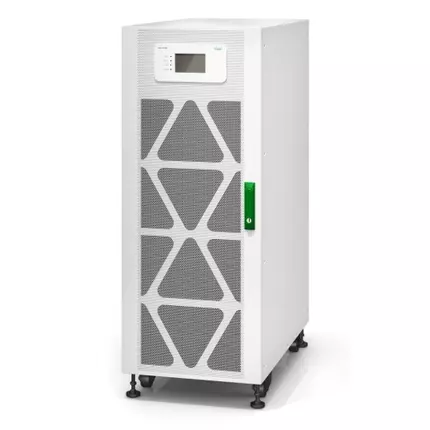

APC Easy UPS 3M 120kVA 400V 3:3 UPS for External Batteries E3MUPS120KH

This UPS has 60-200 kVA (400V) and 50-100 kVA (208V) easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 3 phase UPS for small and medium data centers and other business critical applications. Features: Output power capacity: 120.0kWatts / 120.0kVA Nominal Output Voltage: 400V 3PH Nominal Input Voltage: 400V 3PH Maximum Input Current: 207.0A Technical Specifications: Output Max Configurable Power (Watts): 120.0kWatts / 120.0kVA Output Voltage Distortion: Less than 3 % Output Frequency (sync to mains): 50 Hz Sync to mains, 60 Hz Sync to mains Other Output Voltages: 380 V, 415 V Topology: Double conversion online Waveform type: Sine wave Overload Operation: 10 minutes at 125% and 60 seconds at 150% Output Voltage THD: < 3% linear load and < 5% non-linear load Output Voltage Tolerance: +/- 1 % Input Input frequency: 40 - 70 Hz Input voltage range for main operations: 342 - 477V Input Total Harmonic Distortion: Less than 3 % for full load Other Input Voltages: 380 V, 415 V Maximum Short Circuit Withstand (Icw): 10.0kAmps Input Power Factor at Full Load: 0.99 Batteries & Runtime Battery type: External battery system Communications & Management Interface Port(s): E3M_parallel Control panel: Touch screen LCD user interface Physical Maximum Height: 1300mm, 130.0cm Maximum Width: 500mm, 50.0cm Maximum Depth: 850mm, 85.0cm Net Weight: 193.0kg Environmental Operating Temperature: 0 - 40 °C Operating Relative Humidity: 0 - 95 (Non-condensing) % Operating Elevation: 0 - 1499.92meters Storage Temperature: -25 - 55 °C Storage Relative Humidity: 0 - 95 (Non-condensing) % Storage Elevation: 0 - 15240meters Audible noise at 1 meter from surface of unit: 72.0dBA Online thermal dissipation: 20473.0BTU/hr Protection Class: IP20
