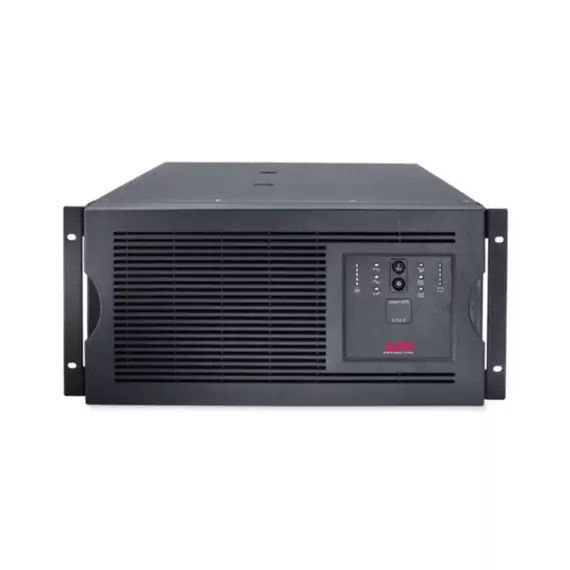

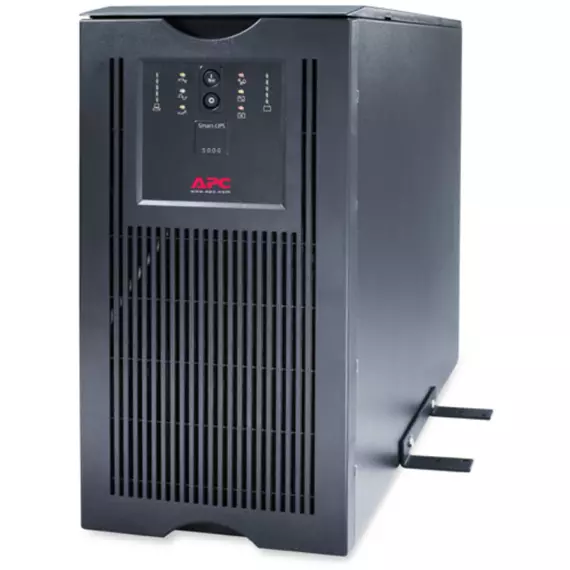

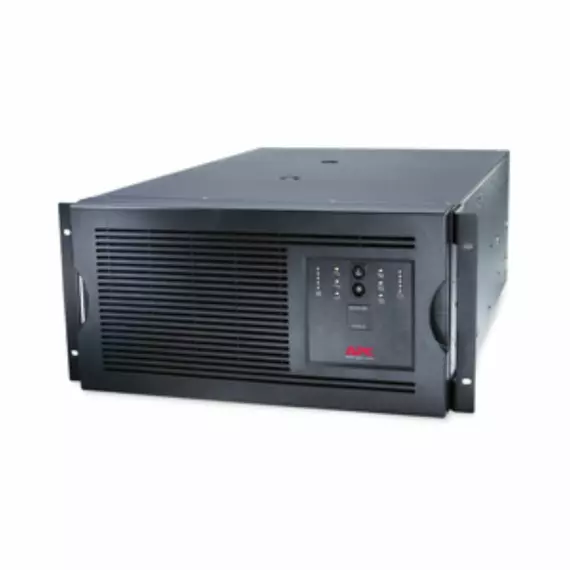

APC Smart UPS Rackmount/Tower 5000VA 230V SUA5000RMI5U

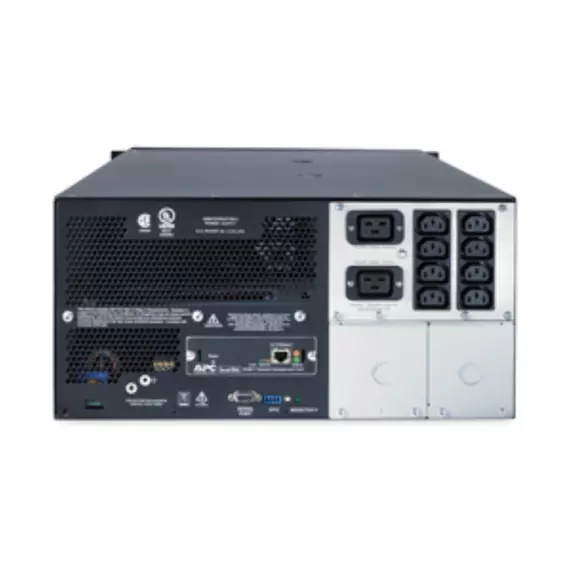

The Smart-UPS 5000VA 230V Rackmount/Tower from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe. The UPS can communicate with a computer via serial for automatic shutdown in the event of a power failure. It features 10 outlets, all of which provide battery backup. Its battery provides 26.7 minutes of run time at half-load capacity. Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Features: Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities. Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold. Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Specifications: General Number of power module filled slots: 0 Number of power module free slots: 0 Redundant: No Physical Colour: Black Height: 22.2 cm Width: 48.3 cm Depth: 66 cm Net weight: 97.73 kg Mounting location: Front Mounting preference: No preference Mounting mode: Rack-mounted Two post mountable: 0 USB compatible: No Input Input voltage limits: 151...302 V adjustable 160...286 V Number of input connector: 1 hard wire 3-wire Network frequency: 50/60 Hz +/- 3 Hz auto-sensing Output Crest factor: 3 : 1 Harmonic distortion: Less than 5 % at full load Maximum configurable power in VA: 5000 VA Maximum configurable power in W: 4000 W Transfer time: 2 ms typical : 4 ms maximum UPS type: Line interactive Wave type: Sine wave Efficiency: 96 % (full load) Output frequency: 47...53 Hz for 50 Hz nominal sync to mains Conformance Product certifications C-Tick CE GOST VDE Marking GS Mark Standards EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 Environmental Acoustic level: 53 dBA heat dissipation: 430 Btu/h Operating altitude: 0...10000 ft Ambient air temperature for operation: 0…40 °C Ambient air temperature for storage: -15…45 °C Storage altitude: 0.00…15240.00 m Relative humidity: 0…95 % Storage Relative Humidity: 0…95 % Communications & Management Alarm Audible and visible alarms : configurable delays Free slots: 0 Preinstalled device Network management card Control panel LED status display with on line : on battery : replace battery and overload indicators Surge Protection and Filtering Surge energy rate: 480 J Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Packing Units Unit Type of Package: 1 PCE Number of Units in Package: 1 1 Package 1 Height: 63.5 cm Package 1 Width: 61 cm Package 1 Length: 76.2 cm Package 1 Weight: 106.82 kg Unit Type of Package: 2 PAL Number of Units in Package: 2 4 Package 2 Height: 119 cm Package 2 Width: 100 cm Package 2 Length: 120 cm Package 2 Weight: 464 kg Technical Specifications: Run time for load: 4000 W Min-max: 400-4000 W 9min 21s Max. Capacity Used: 100 >#/li### Main Input Voltage: 230 V Main Output Voltage: 230 V Other Output Voltage: 220 V, 240 V Rated power in W: 4000 W Rated power in VA: 5000 VA output connection type: 8 IEC 320 C13 4 IEC Jumpers 2 IEC 320 C19 Number of rack unit: 5U Battery type: VRLA Provided equipment CD with software Documentation CD Installation guide Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card Batteries & Runtime Run Time Additional information: Configurable for 220 : 230 or 240 nominal output voltage Extended runtime: 0 Number of battery filled slots: 0 Number of battery free slots: 0 Battery recharge time: 3 h Number of battery replacement quantity: 2 Battery life: 3…5 year(s) Battery power in VAH: 1632 VAh runtime Battery charger power: 542 W rated
