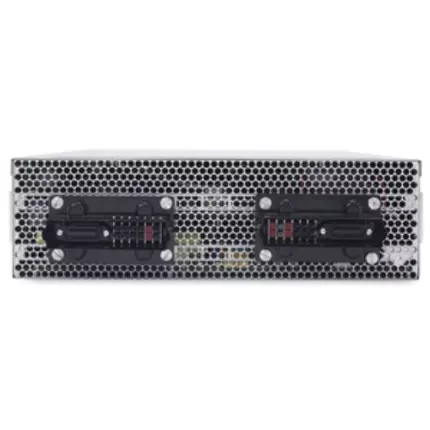

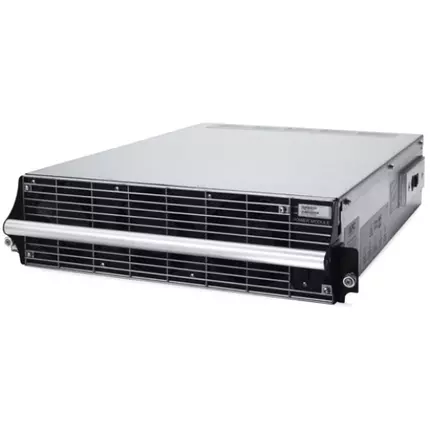

APC Symmetra PX Power Module SYPM10K16H

A 16kW high efficiency power module for the Symmetra PX160kW & PX48kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver ... Includes: Installation guide Technical Specifications Output Max Configurable Power (Watts): 16.0kWatts / 16.0kVA Output Voltage Note: Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage Efficiency at Full Load: 95.0 % Output Voltage Distortion: Less than 2 % Output Frequency (sync to mains): 50 Hz +/- 0.1 % For 50 Hz nominal Unsynchronised, 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz Sync to mains Load Crest Factor: Unlimited Topology: Double conversion online Overload Operation: 10 minutes at 125% and 60 seconds at 150% Output Voltage THD: < 2% for 0 to 100% linear load and < 6% for full non-linear load Output Voltage Tolerance: +/- 1% static and +/- 5% at 100% load step Input Input frequency: 40 - 70 Hz Input voltage range for main operations: 340 - 477V Efficiency at Full Load: 95.0 % Input Total Harmonic Distortion: Less than 5 % for full load Maximum Short Circuit Withstand (Icw): 30.0kAmps Input Power Factor at Full Load: 0.99
